CONPROSYS SERIES M2M GATEWAY FOR PLC

Brand : CONTEC
Model : CPS-MG341-ADSC1-111

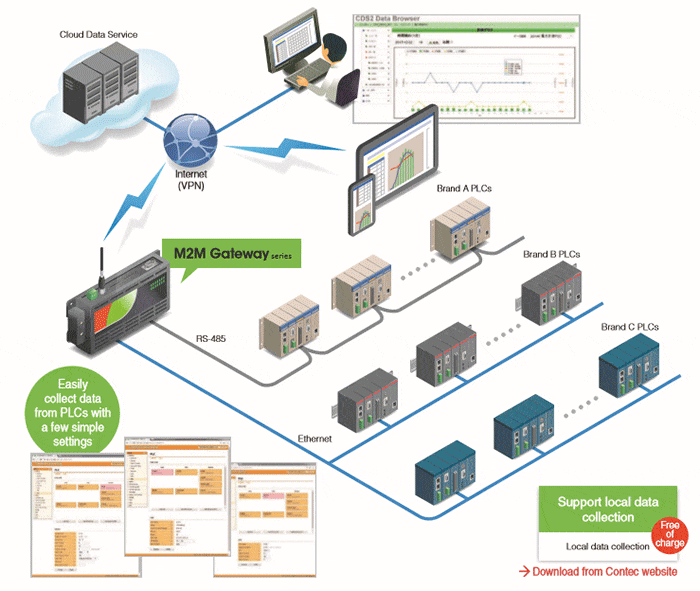

This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, and LAN interface. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. CPS-MG341-ADSC1-111 is the data collector [M2M Gateway for PLC] controller that supports respective PLCs as well as various Modbus devices. In the facilities with PLC controlling, data can be collected by M2M Gateway for PLC controller, and the facilities without PLC controlling, data can be collected by M2M controller. “M2M Gateway for PLC” can connect up to 10 Ethernet/calculating links with differing makers PLCs simultaneously. With the CONPROSYS series, data can be collected from various types of facilities and managed them all centrally. All the processes from development to operation can be performed on a web browser. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.
